Area 419 Hellfire Muzzle Brake

Area 419 Hellfire Muzzle Brake: Designed for Precision, Built for Results

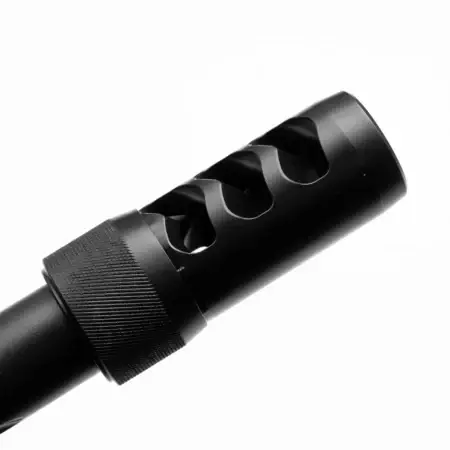

The Area 419 Hellfire Muzzle Brake is not a rehash of existing designs — it’s a purpose-built system, engineered from the ground up for superior recoil control, easy installation, and uncompromising performance. Tested side-by-side with top-tier brakes on the market, the Hellfire consistently delivers results, reducing recoil by up to 52% on a 6.5 Creedmoor rifle.

Unlike traditional brakes that require tools, shims, or guesswork, the Hellfire’s self-timing design simplifies everything. Its locking collar ensures the brake stays aligned without rotating during installation. Once set, you’ll get repeatable return-to-zero performance every time — even after removal and reinstallation.

Versatile Caliber Selection with the Area 419 Hellfire Muzzle Brake

To make choosing easier, Area 419 offers four size options that cover a broad range of calibers. These pre-set configurations eliminate the need for hyper-specific bore sizes, while still delivering top-tier recoil reduction. This approach also allows Area 419 to keep costs down and availability up.

Available Sizes:

• .223 / 6mm – Fits calibers up to 0.243 (e.g., .223, 5.56 NATO, .204, .17 cal)

• 6.5mm – Up to 0.264 (e.g., .257 Roberts, 6.5 Creedmoor; Magnums OK)

• 7mm / .308 – Up to 0.308 (e.g., 7mm Rem Mag, .284, .270)

• .338 – Up to 0.338 (e.g., .338 Lapua, .338 Edge). For ultimate recoil control in this class, consider the Sidewinder Brake.

Key Features That Set It Apart

The Area 419 Hellfire Muzzle Brake offers more than just basic recoil reduction. Every design element serves a purpose — from ease of use to consistent accuracy.

What makes the Hellfire standout:

• Brake won’t rotate during collar torqueing — installation is exact every time

• No tools required — just a simple knurled collar for hand-tight timing

• Maintains zero after removal and reattachment

• Rear-facing port design delivers unmatched recoil control without top porting

• Proprietary taper-lock system ensures solid alignment and repeatable fit

• Engraved caliber marking and alignment line for quick orientation

• 100% CNC machined in Northwest Ohio from heat-treated 17-4PH stainless steel

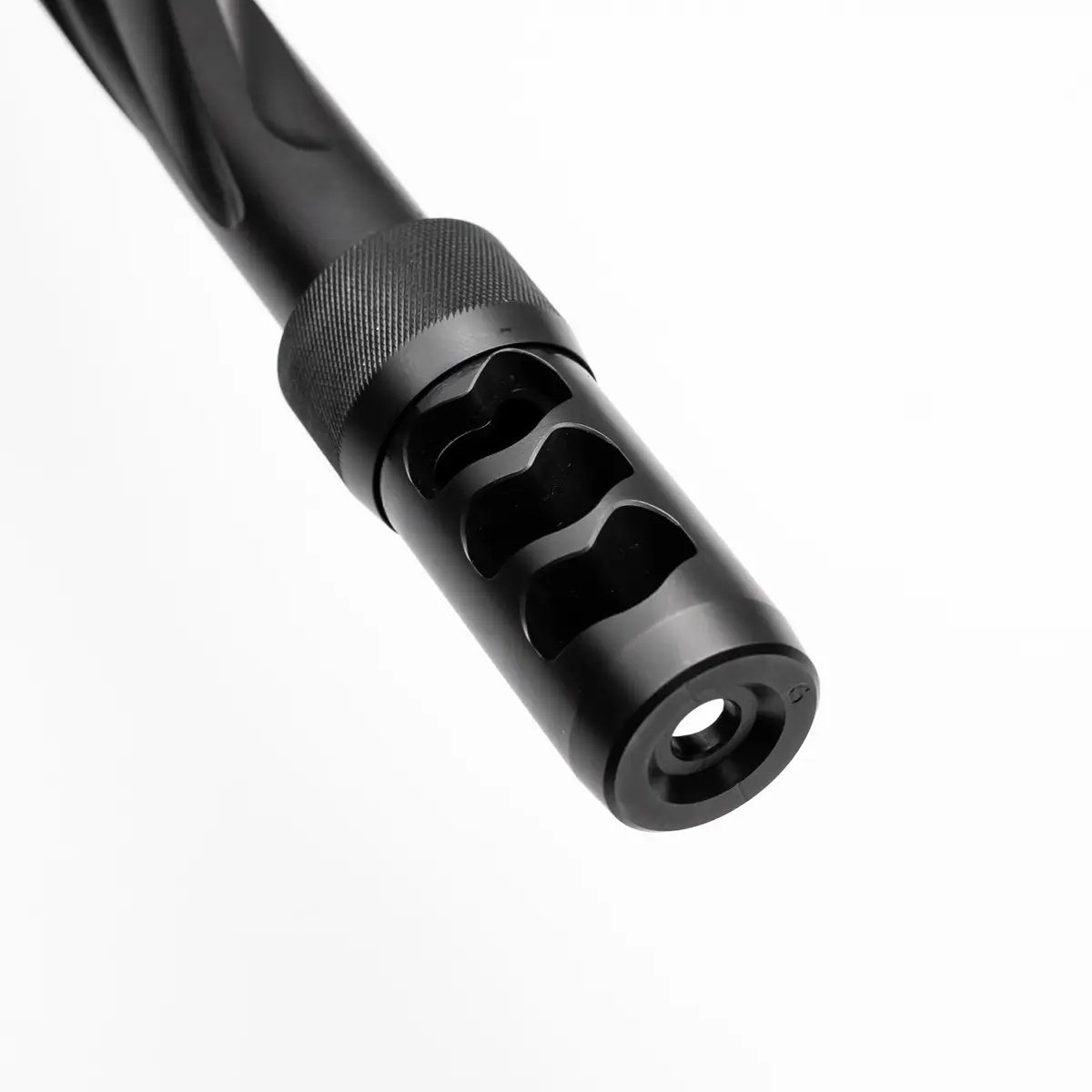

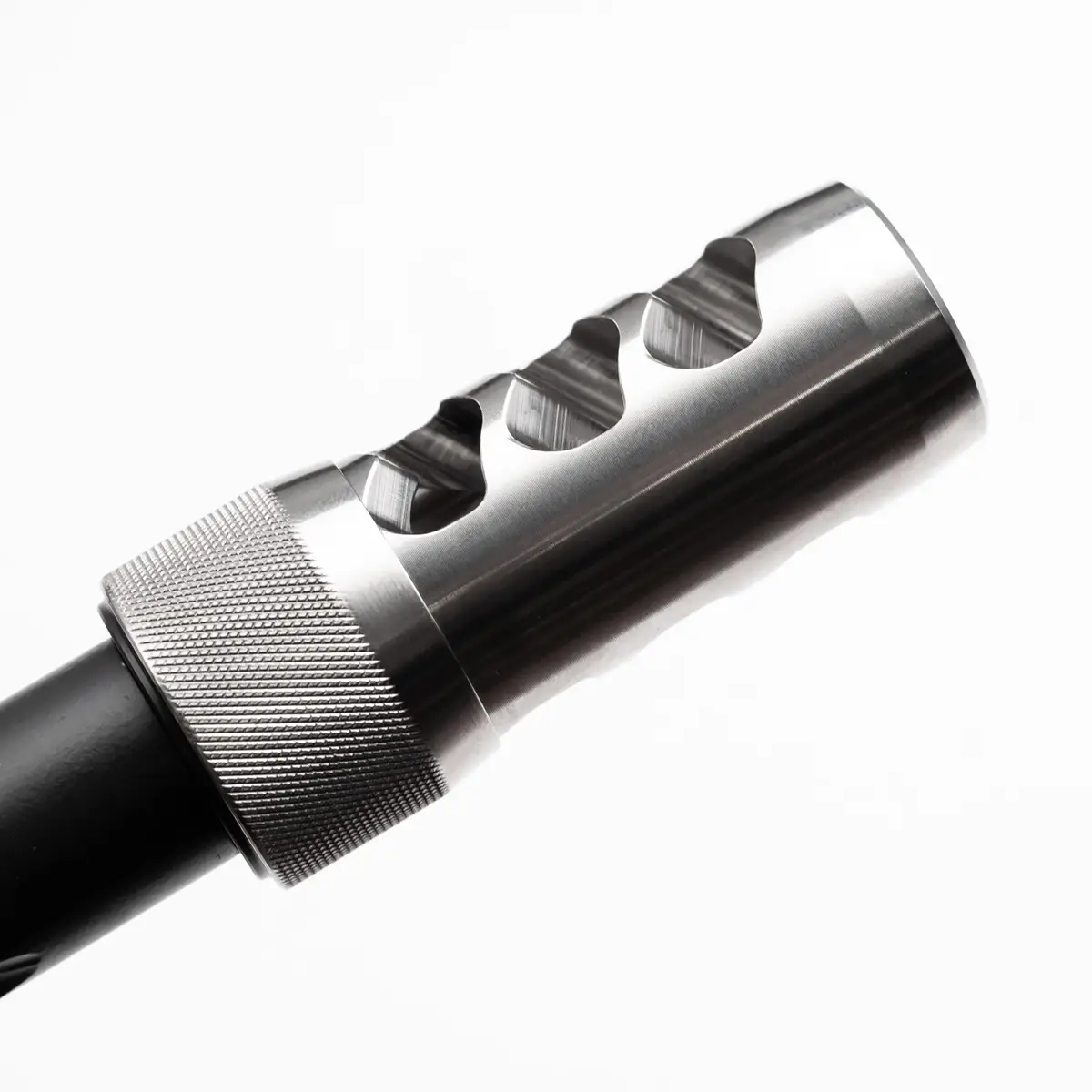

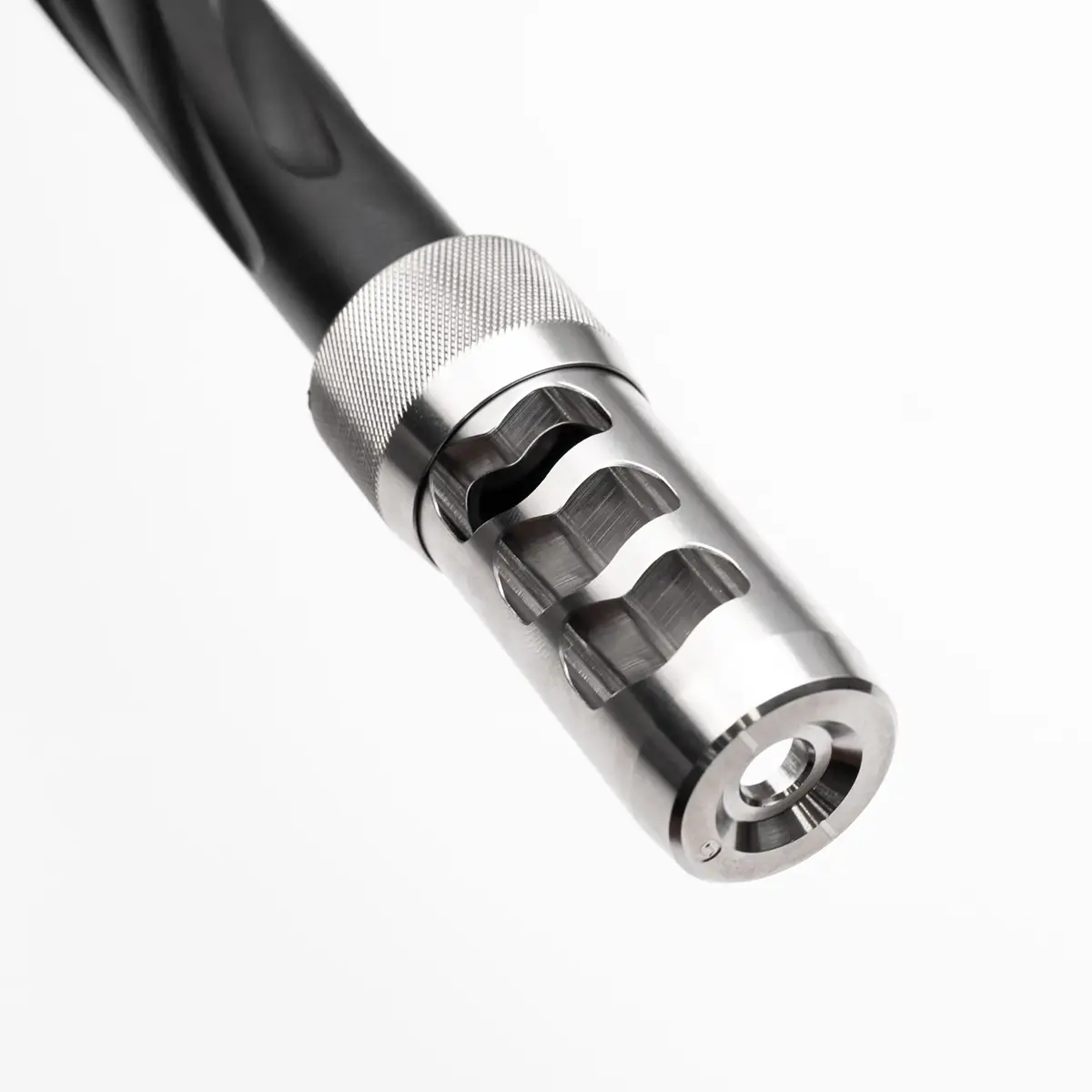

• Available in raw stainless or Black Nitride finish

• Adds approx. 2” to overall barrel length

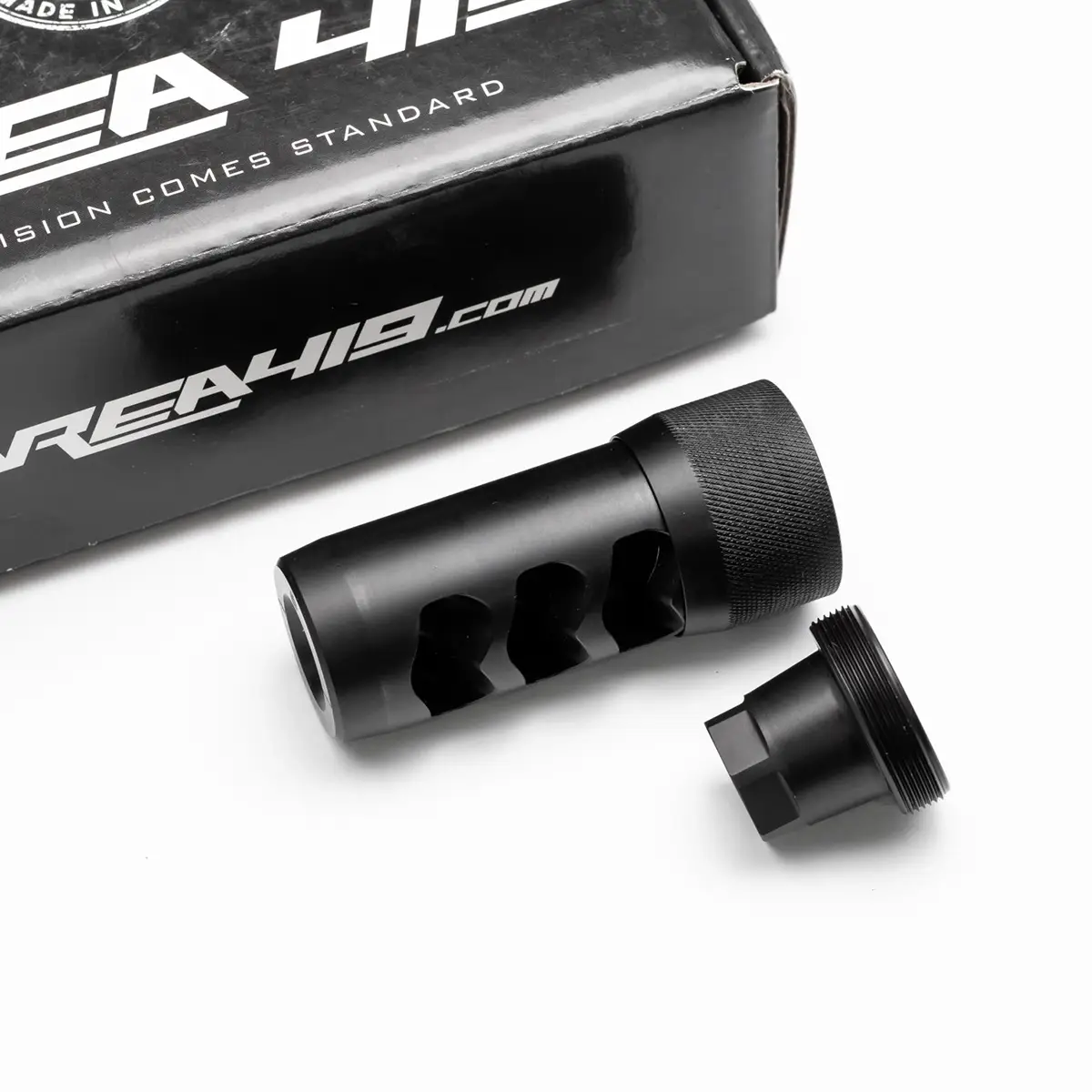

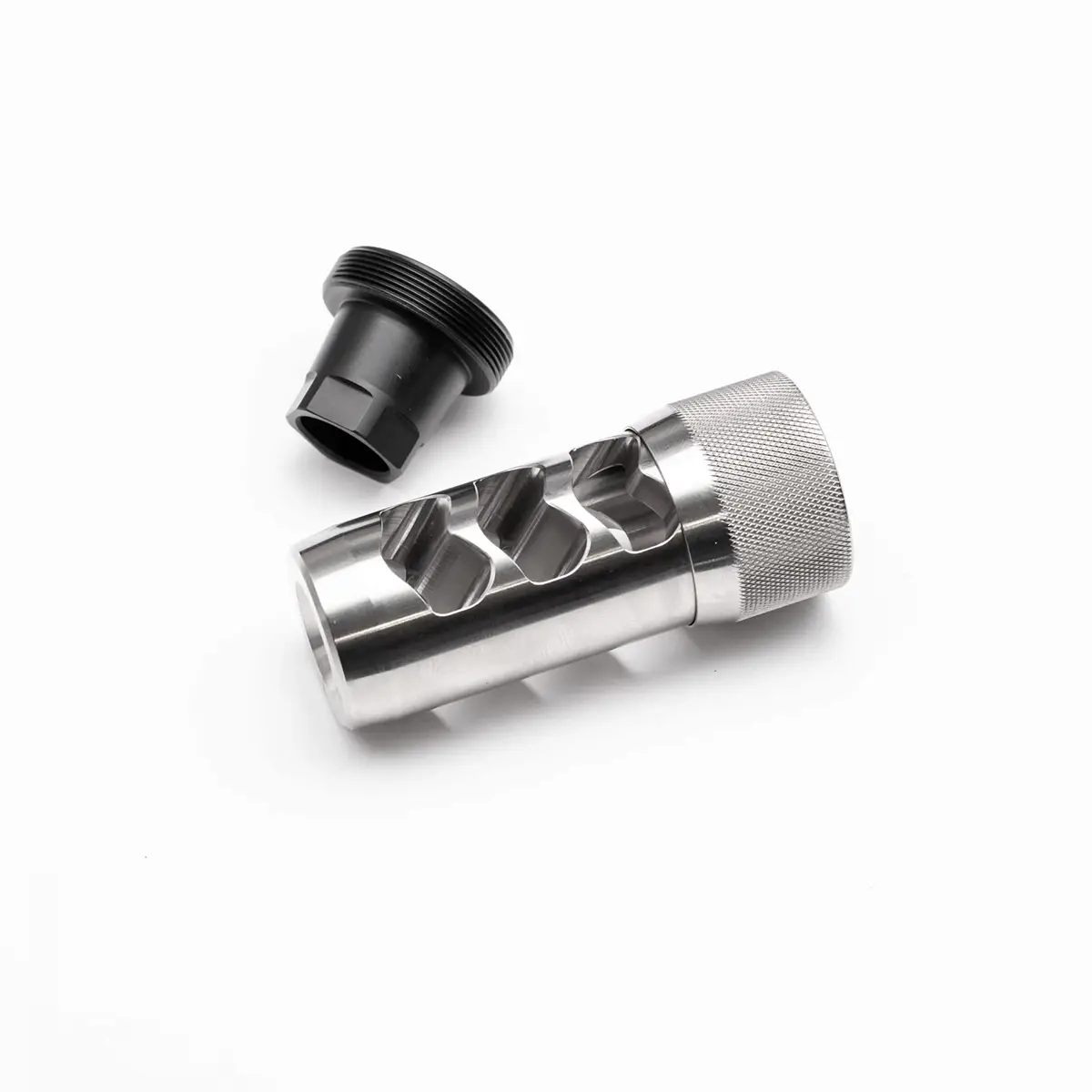

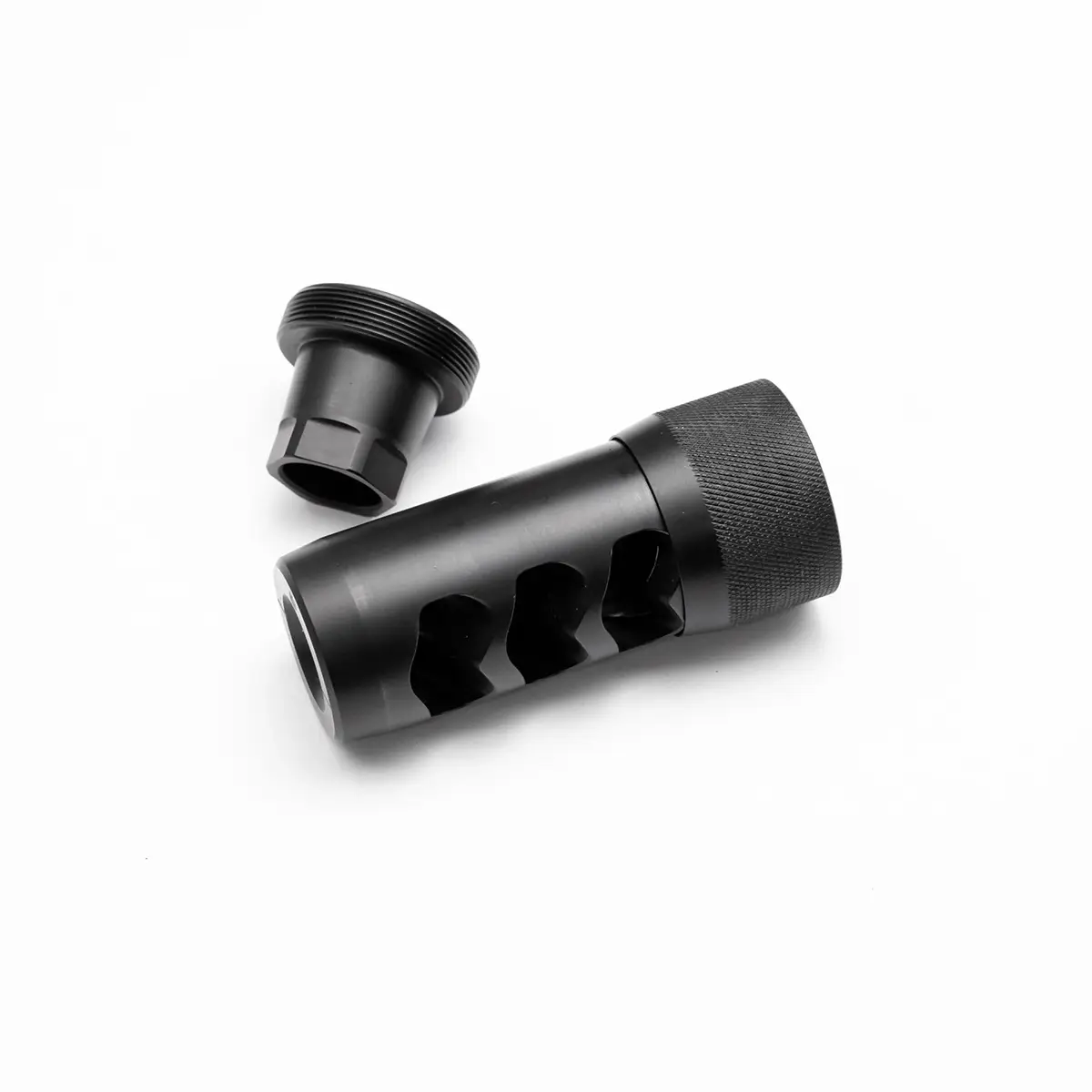

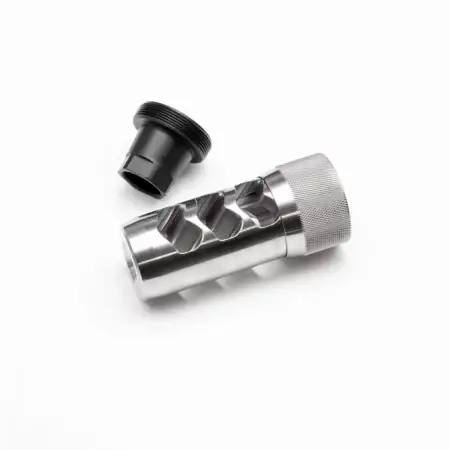

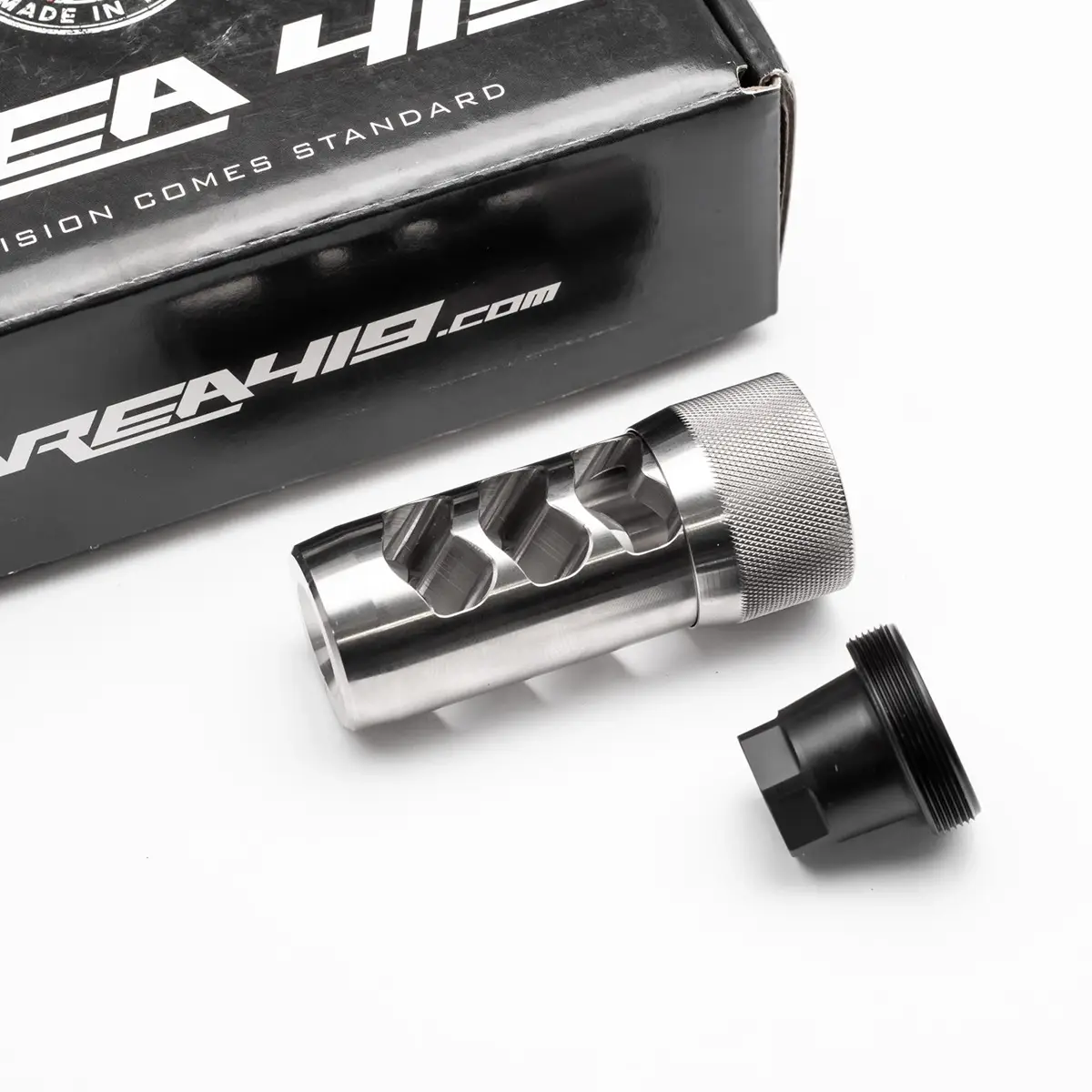

• Universal adapters in black only; brakes available in finish of choice

• Compatible with Hellfire suppressor mount adapters

Maintenance and Care for your Area 419 Hellfire Muzzle Brake

Like your barrel, your muzzle brake needs regular cleaning. Carbon builds up over time, especially in the last port. If neglected, buildup can affect accuracy or, in extreme cases, interfere with bullet flight.

Maintenance Tips:

• Clean every 200–400 rounds (more frequently for smaller calibers like 6mm)

• Use carbon removers like Boretech C4

• Avoid acidic cleaners (like Lemishine or CLR) that damage the Black Nitride finish

• For raw stainless, use a soft brush — harder brushes may scratch

• Do not wet tumble the brake with pins or media, as this can damage internal locking components

• Also clean the Universal Adapter regularly to maintain a clean barrel crown and taper surface

Staying on top of preventive maintenance ensures your brake performs exactly as it should — every time you pull the trigger.
